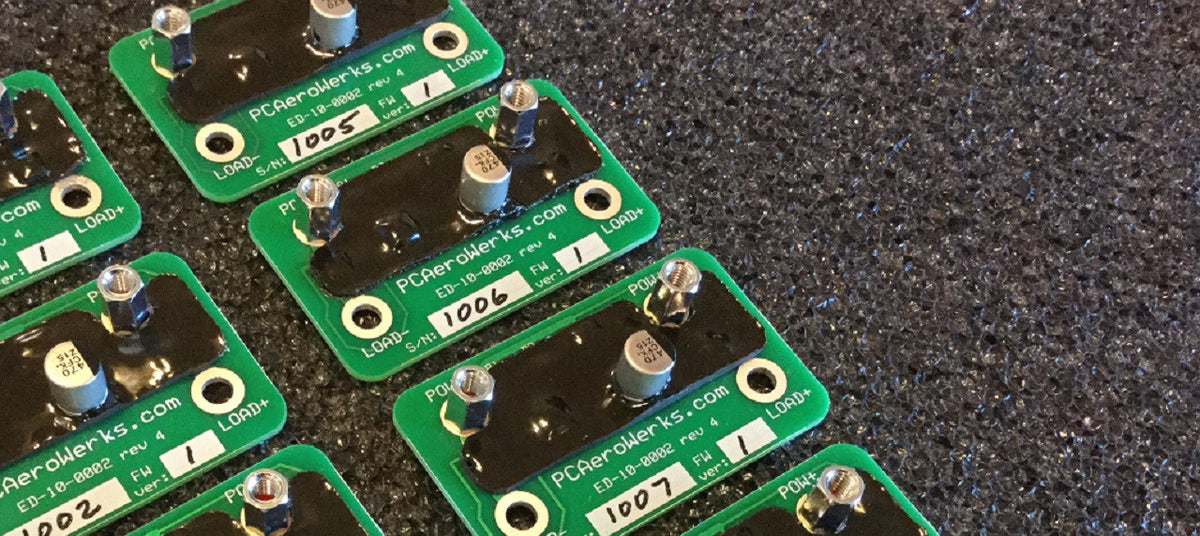

Increase your visual recognition with this "Bolt-on" electronic pulse controller for Experimental General Aviation LED landing lights.
Requires NO wiring, NO hole drilling, NO additional switches. It's as simple as installing a landing light.
Just attach it to the lamp's existing terminals, then reconnect power and ground to the PCB's standoffs. That's it, reinstall the landing light and you're DONE !!!
Click HERE for Detailed Installation InstructionsClick one of the Links below that matches your particular LED:
1) Whelen Parmetheus and Parmetheus Plus
( NOTE: The descriptions below describe operation of AeroPulse with PULSE as the default "ON" mode. STEADY default "ON" mode can also be set at any time by simply moving a jumper to the STEADY default position. )
For normal daytime operation, just leave the landing light switch in the ON position so that the light comes on with the MASTER switch. When power is first applied, the controller will default to operation in PULSE mode with a rate of approximately 45 pulses per minute. For Daytime operation, you'll never have to think about it again.
For nighttime landings when a STEADY-ON mode is desired, simply toggle the landing light switch OFF then back ON within approximately 1-2 seconds and the controller will change to STEADY-ON mode. Subsequent toggling of the light switch will change between PULSE and STEADY output modes.
Should you ever become unsure of which mode the AeroPulse is in Just toggle the landing light switch to OFF...allow a minimum of 10 seconds to pass...then toggle it back on. The "keep alive" circuitry will bleed down below the voltage necessary to reset the micro-controller and when you toggle the switch back to the ON position, you can be assured that the AeroPulse will be in Default "ON" mode (PULSE in this instance). Then, if it was really STEADY mode you wanted, just toggle the switch OFF-then-ON again within approximately 1-2 seconds. It's THAT SIMPLE.
Available NOW.
> AeroPulse is intended for Experimental aircraft installations
Please see the FAQ page for more information
> Weight: 20 grams
> Proudly made in USA
> Compatible with both 14V and 28V DC systems
> Epoxy coated for vibration and corrosion protection
> Jumper selectable Default "ON" action, PULSE or STEADY
> Surface mount electronics with reverse polarity protection
> Compatible with both PAR36 and PAR46 LED landing lights
> Max current approximately 3 amps (i.e. designed for LED loads only )
> 60 day No questions asked, 100% money back guarantee if not completely satisfied
> AeroPulse is warranted to be free from defects in material and workmanship for a period of three (3) years from date of shipment
